Shaft Assemblies
Custom manufacturing, complete machining and assembled shaft units up to 8 metres — made to your drawing.
Vishal Engi-Chem, India, manufactures and supplies industrial shafts, precision machined shafts and complete shaft assemblies for power transmission, material handling and process machinery. We manufacture shafts as per customer drawings, covering individual replacement components and assembled units with wheels, sprockets, rollers and bearing housings. Our manufacturing capacity includes shaft assemblies up to 8 metres in length, subject to component diameter, weight, configuration and machining requirements.
From drawing review and material selection to machining, fabrication, welding and assembly, we focus on the details that affect fitment and performance: bearing seating, shaft alignment, mating dimensions and assembly accuracy.
Specifications
Technical specifications
| Shaft types | Stepped, tapered, hollow, solid, drive and custom transmission shafts |
|---|---|
| Assembly length | Up to 8 metres, subject to diameter, weight, configuration and machining requirements |
| Machining | Turning, step and taper turning, facing, boring, drilling, threading, keyway slots, grooving, journal finishing |
| Critical features | Journal diameters, shoulder positions, keyway dimensions, concentricity, surface finish |
| Materials | Mild steel, carbon steel, alloy steel, stainless steel, forged steel |
| Assemblies | Shafts with wheels, sprockets, bearing housings or rollers; cladded rollers |
| Fabrication & cladding | Roller bodies, drums, hubs, end plates; weld overlay and hardfacing where specified |
Complete shaft machining facilities

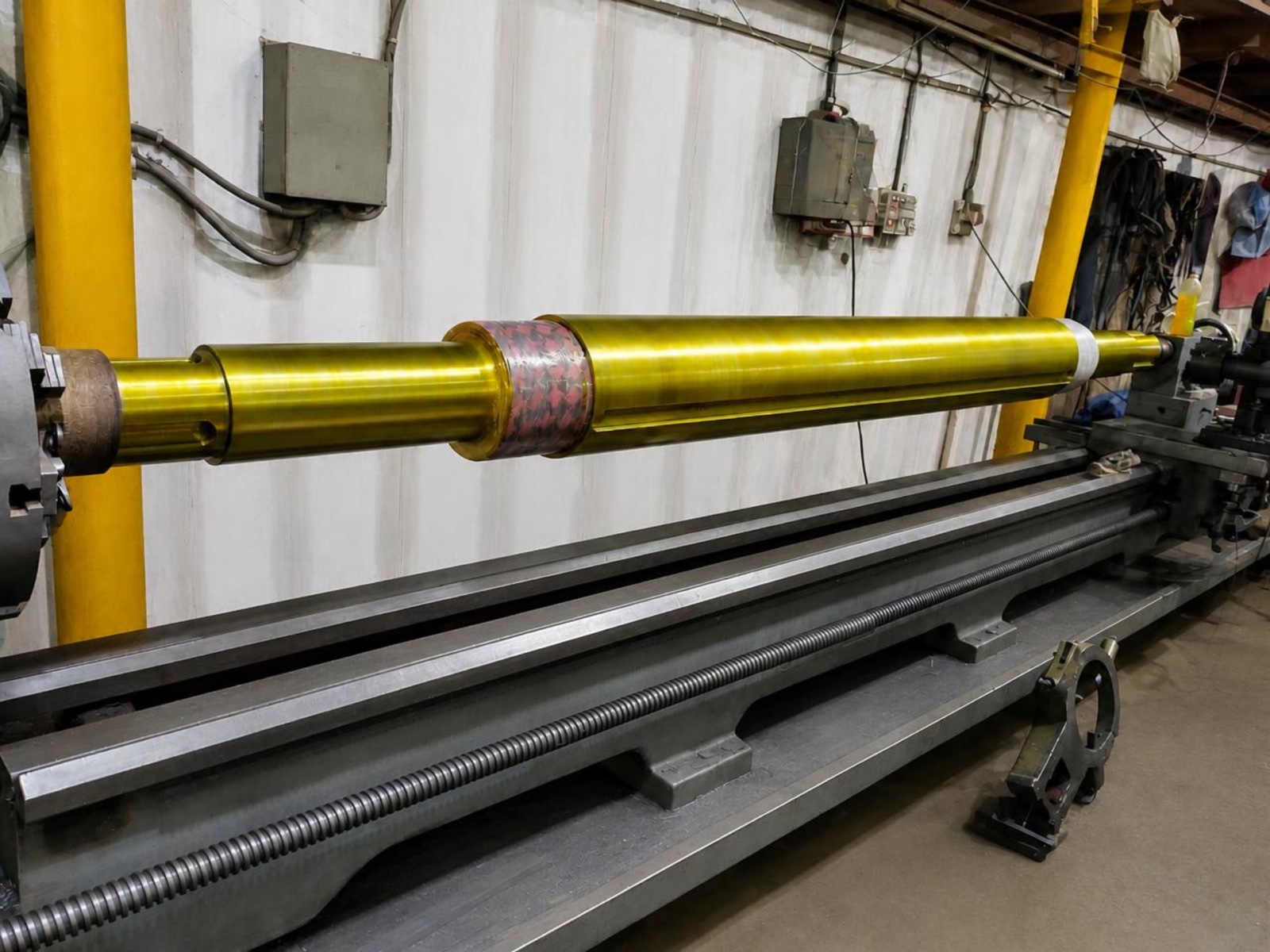

Our shaft machining services cover turning, step turning, facing, taper turning, boring, drilling, threading, keyway slot machining, grooving and finishing of bearing journals and mounting surfaces. We manufacture stepped shafts, tapered shafts, hollow shafts, solid shafts, drive shafts and custom transmission shafts to specified dimensions and tolerances.
Machining is carried out to suit the fitment of bearings, couplings, gears, sprockets, wheels and rollers. Particular attention is given to journal diameters, shoulder positions, keyway dimensions, concentricity and surface finish, according to drawing requirements. Material options can include mild steel, carbon steel, alloy steel, stainless steel and forged steel, depending on loading, wear, corrosion exposure and operating conditions.
Custom shaft assemblies as per drawings
We supply a range of machined and assembled industrial shaft components, including:

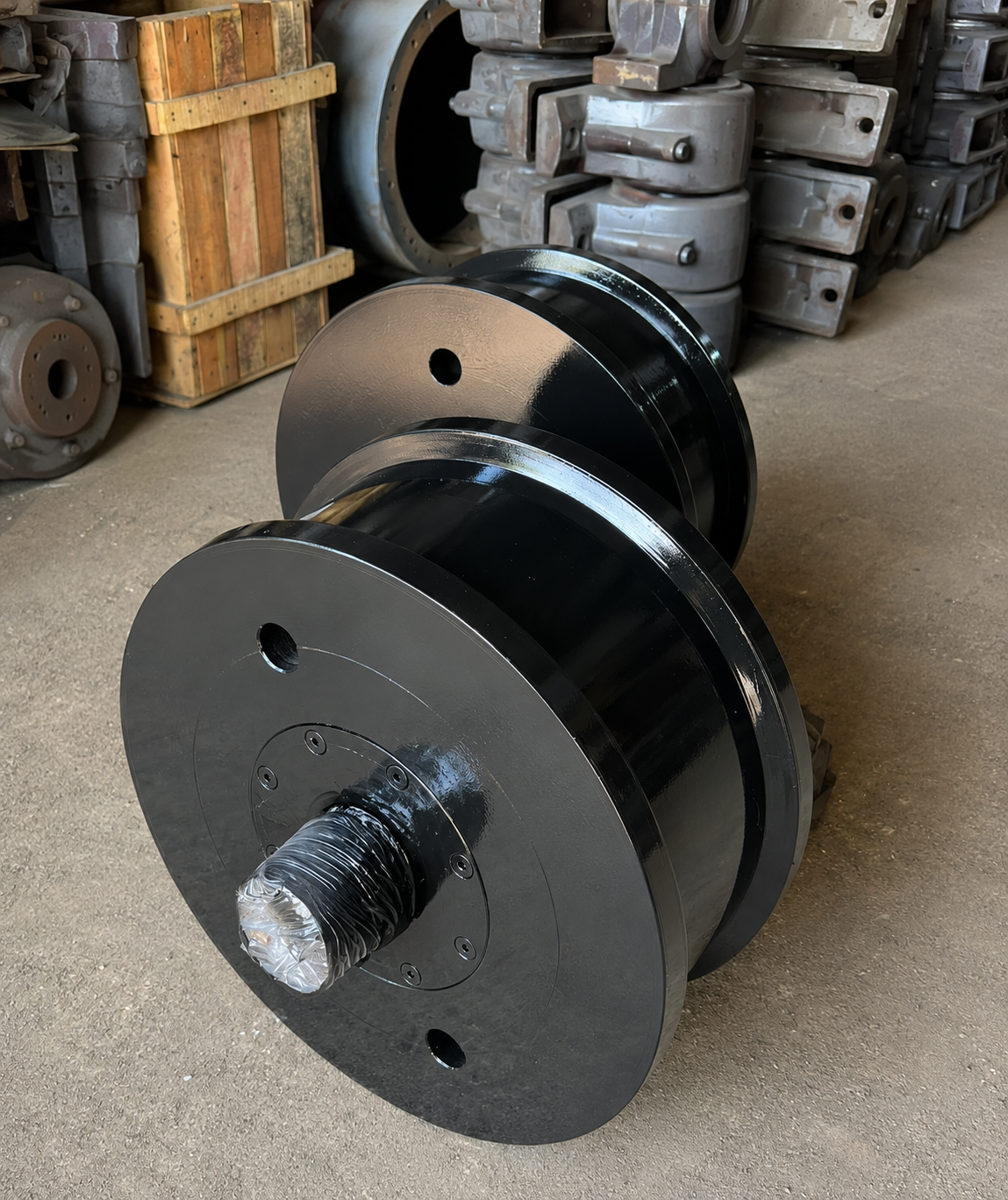

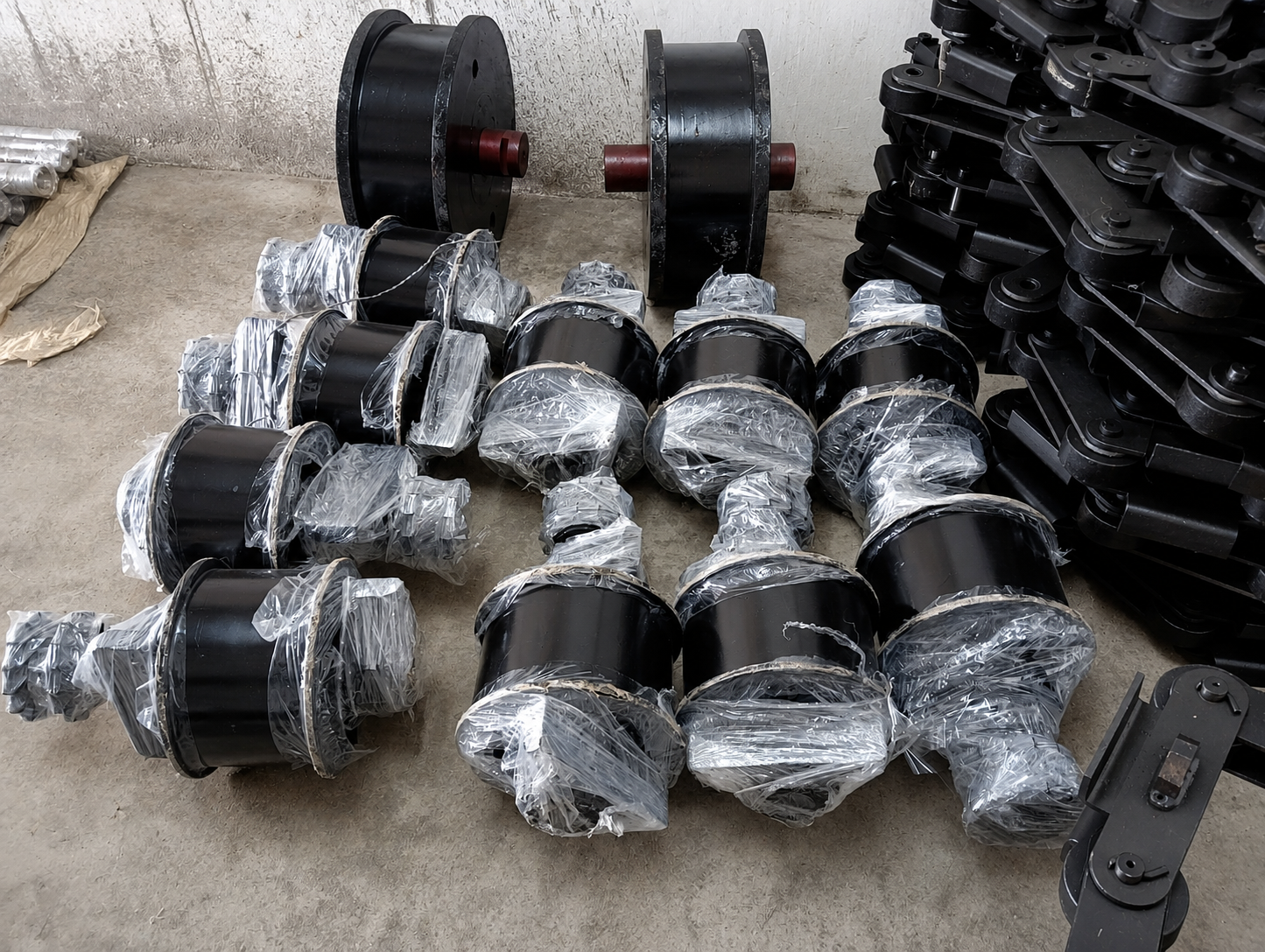

- Shaft with wheel assembly: wheel-mounted shafts for industrial movement, material handling and machinery applications.

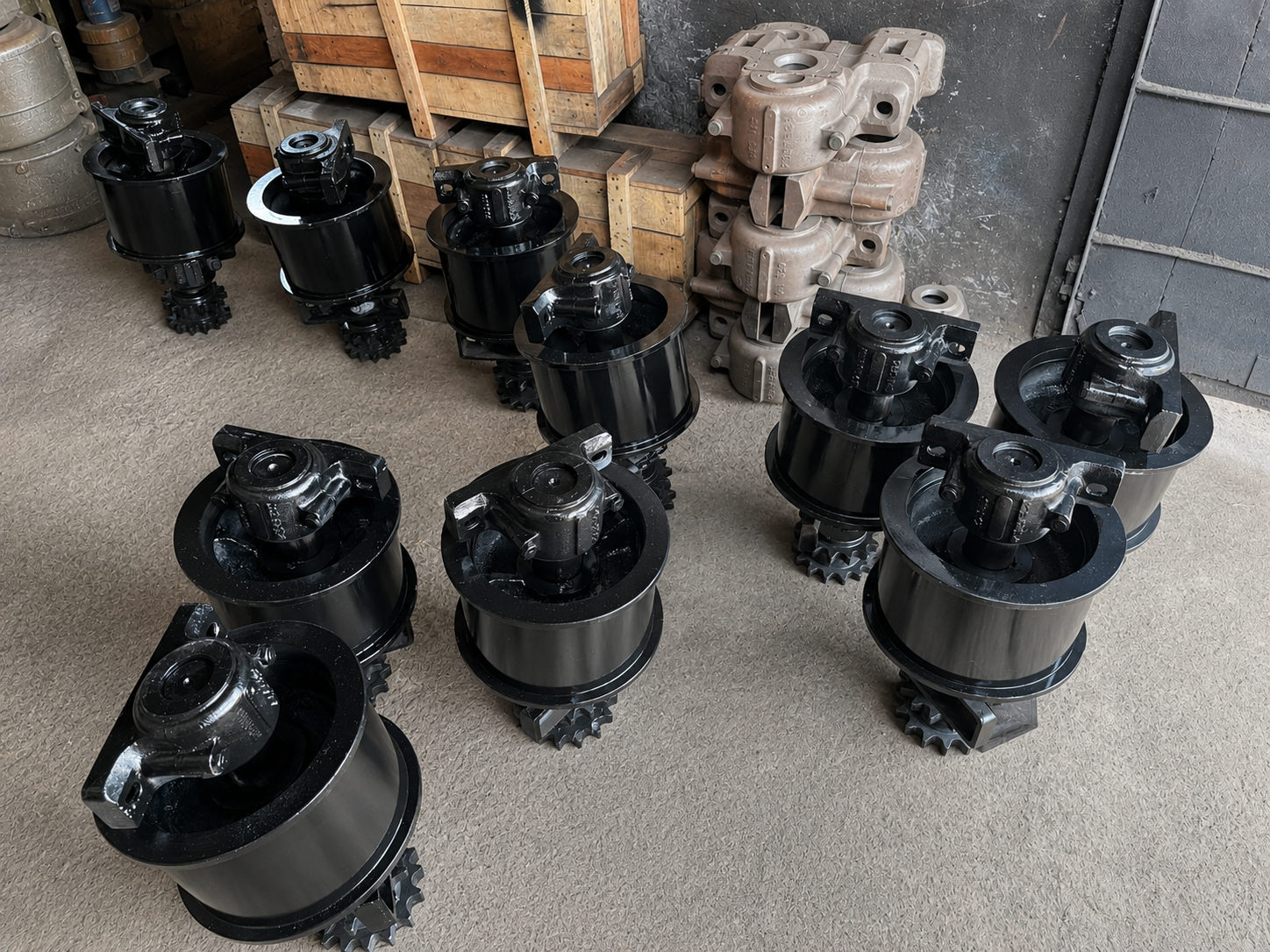

- Shaft with sprocket assembly: conveyor drive shafts, head shafts and tail shafts supplied with sprockets in assembled condition.
- Shaft with bearing housings: assemblies incorporating bearings, bearing blocks or plummer block housings to suit the specified arrangement.

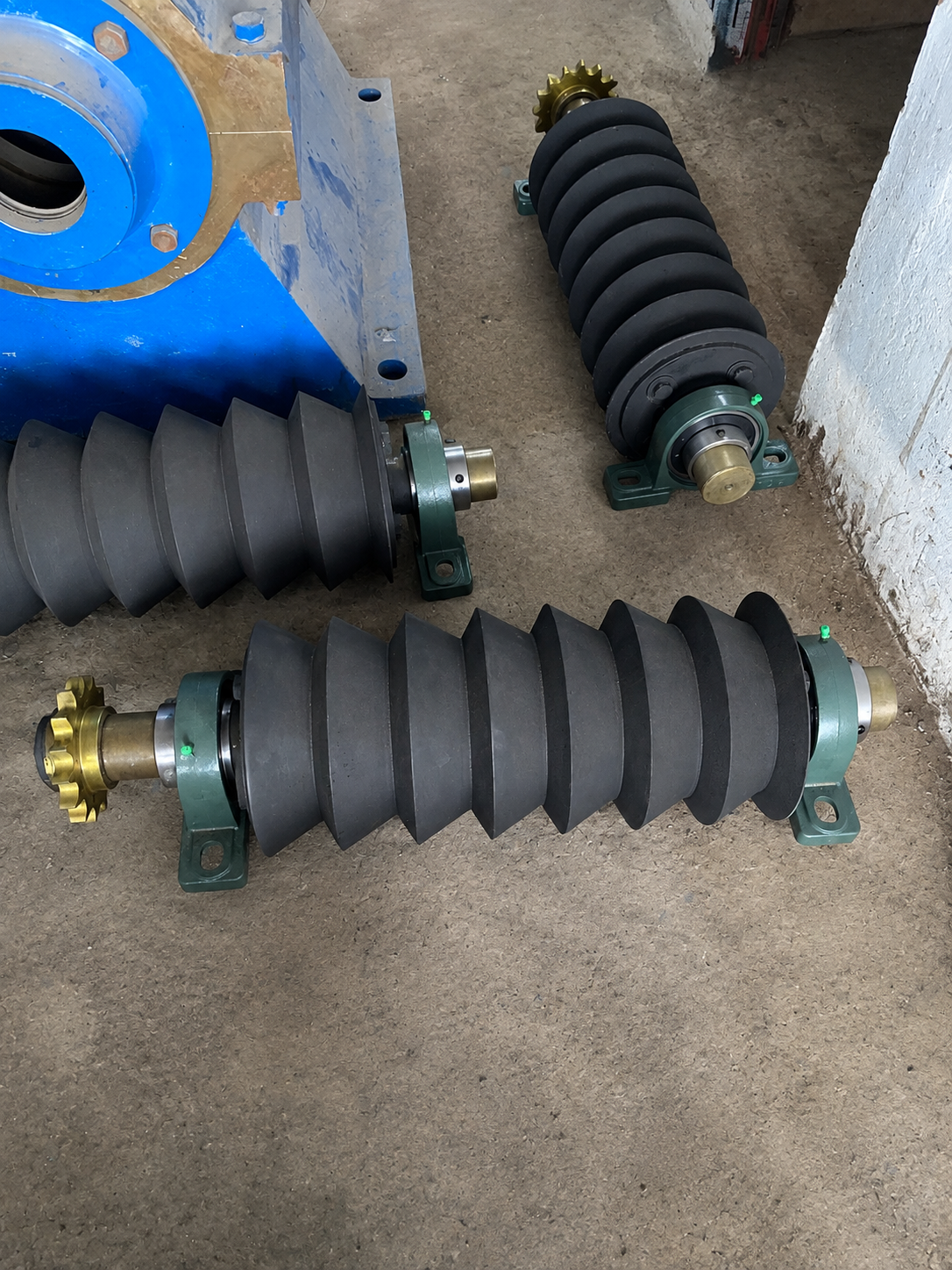

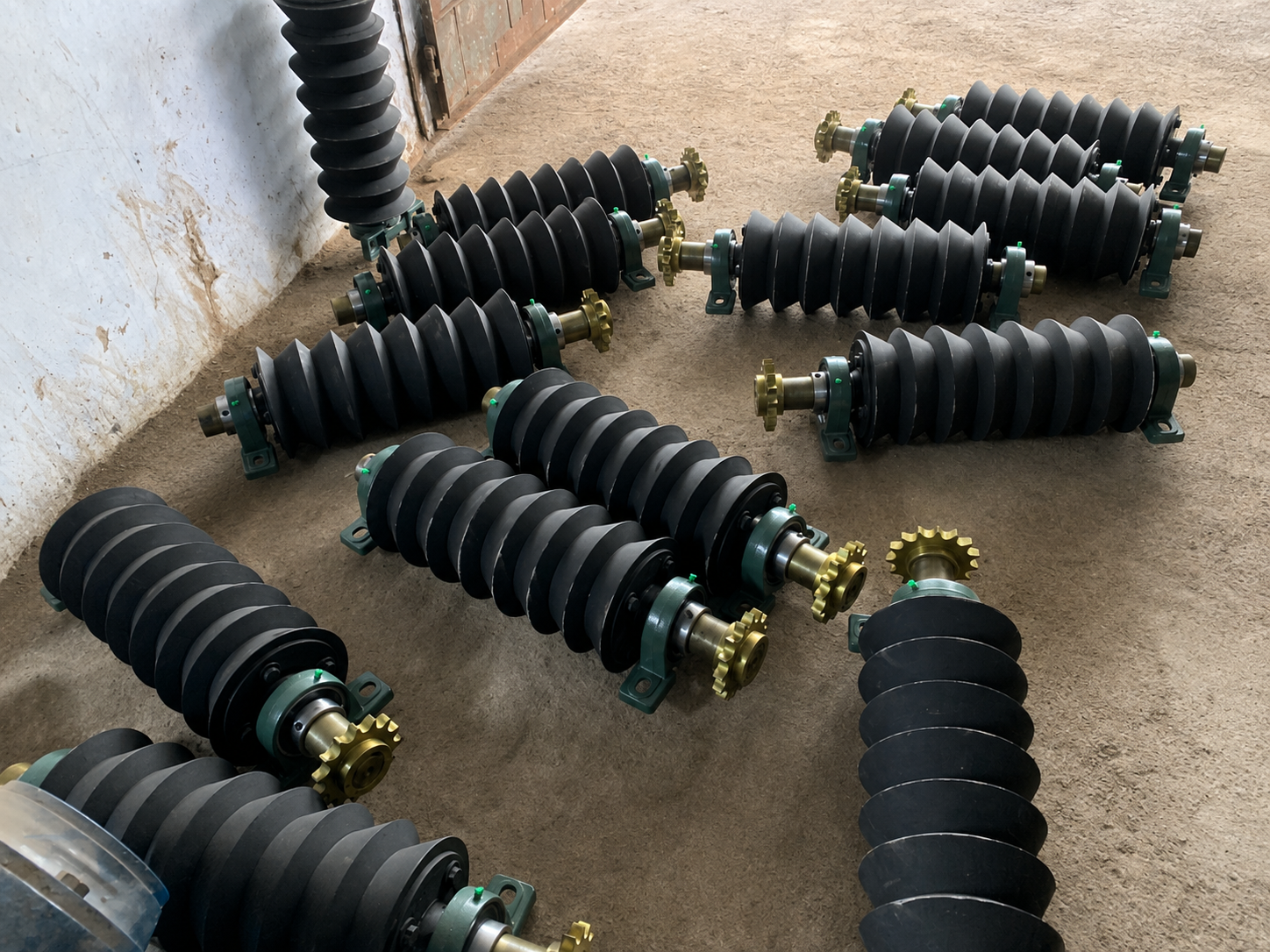

- Shaft with rollers: conveyor roller shafts, process roller assemblies, support rollers and driven roller units.
- Cladded rollers: roller bodies with specified metallic cladding or weld overlay for service conditions requiring wear or corrosion resistance.
- Drawing-based shaft assemblies: custom components manufactured to approved drawings for new machinery, plant maintenance and equipment replacement.
Fabrication, welding & roller cladding
Our fabrication and welding capabilities support the manufacture of roller bodies, drums, hubs, end plates, mounting supports and associated assembly components. Work may include plate preparation, fit-up, welding and subsequent machining to achieve the required finished dimensions.
For cladded rollers and weld-overlay rollers, the cladding material and welding procedure are selected to suit the base material and intended service. Where specified, hardfacing can provide a wear-resistant working surface. Final machining brings roller surfaces, journals and mating areas to drawing requirements, with attention to alignment and weld distortion.
Global supply & export markets
Based in India, Vishal Engi-Chem supplies industrial shafts and shaft assemblies to customers worldwide, supporting machinery manufacturers, plant operators, maintenance contractors and industrial procurement companies. We welcome enquiries from Africa, South America, Southeast Asia, the Middle East, Europe and other international markets, including Indonesia, Thailand, Vietnam, the Philippines, Malaysia, Fiji and Gulf countries.
For custom shaft manufacturing in India, heavy-duty shaft assemblies, complete shaft machining and export supply, send Vishal Engi-Chem your drawings, material grade, dimensions, quantity and operating requirements for a quotation.
Where it's used
Applications
- Steel rolling mills — drive shafts, roller tables and transfer rollers
- Sugar mills — cane carrier, bagasse conveyor and sprocket shaft assemblies
- Cement plants and ball mills — conveyor shafts, roller assemblies and drive shafts
- Chemical plants — process equipment shafts and stainless steel components
- Paper and pulp mills — process roller shafts, conveyor rollers and cladded rollers
- General engineering, bulk material handling and plant maintenance
Get a quotation
What to send us for a quotation
- Shaft or assembly drawing
- Material grade
- Dimensions and overall length
- Components to be assembled (wheels, sprockets, bearings, rollers)
- Quantity
- Operating requirements
Also known as
Industrial shafts · Machined shafts · Transmission shafts · Spindle shafts · Sprocket shaft assemblies · Roller shafts · Bearing housing assemblies
Ejes industriales · Arbres de transmission · Eixos industriais
FAQ
Frequently asked questions
Can you supply the assembly with bearings and housings mounted?+−
Yes. We can supply the complete unit with plummer-block or flanged bearing units, housings and seals mounted and set, or prepared to receive customer-specified bearings.
Can you rebuild a shaft assembly from a worn sample?+−
Yes. We develop replacements from an existing sample and verified site dimensions — matching bearing centres, journals, bore, keyway and drum/pulley/sprocket data so the unit fits the existing bearings and structure.
